PLC BASED
CELLAR CONTROL SYSTEMS
PREMIUM fermentation panels
basic FERMENTATION panels
TANk-MOUNTED controlS
remote connectivity solutions
valves, sensors & controls
INTEGRATED
PLC BASED CELLAR
CONTROL SYSTEMS
PRE-CONFIGURED FOR FAST, EASY START-UP
- Two systems to choose from
- Wire and power and you’re ready to control
- Low cost compared to build from scratch designs
- Full color touch screen that offers multiple screen views
- Color changing display of tank temperatures to indicate deviation from set point
- Internet connectivity standard – complete remote control of system from anywhere!
- Alarms sent to your email
- Temperature trends for each tank
- Can be used with Solenoid valves or Actuated Ball valves
- Built in groups of 8 - up to as many tanks as you have!
UNIJACKET
SINGLE VALVE PER TANK
- Controls one valve per tank
- 9.7" full color touch screen standard
- Multiple tank graphics to choose
- Color changing display of tank temperatures to indicate deviation from set point
MULTIJACKET
UP TO FOUR VALVES PER TANK
- Designed to control One to Four valves per tank
- 15" full color touch screen
- Easy to program control zones make set up fast
- Temperature Profile program standard
- Zone On/Off feature to select what sections of the tank are active or not
- Full temperature trending and data logging of each control zone
MORE INFO

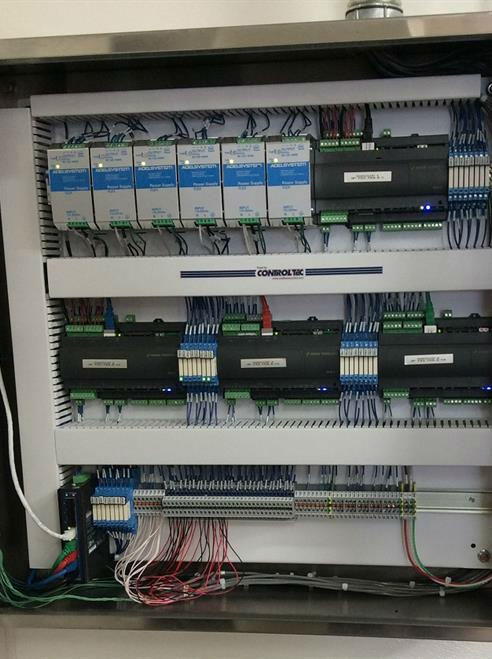

Inside view of UniJacket panel.
Can be built with Stainless or Poly enclosures.
Cellar overview screen - see the whole cellar at once.
Tank view showing temperatures, set points, and alarms.
Control any type of tank.
<
>
UniJacket PLC Cellar Control System
x
MORE INFO
Custom MultiJacket system for 64 zones of control and dual touchscreen displays.
Cellar Overview screen with color codes indicating deviation from setpoint
MultiJacket Tank Setting screen.
MultiJacket Tank View showing temperature in each zone of the tank.
Program-specific time and temperature profiles for each tank.
MultiJacket Cellar System for 40 tanks.
<
>
MultiJacket PLC Cellar Control System
x
1. 24V Power Supplies for valve control (when necessary)
2. PLC Module - each handles 8 tanks
3 Secondary relays handle switching the load of the solenoids and prolong the life of the relays in the PLC module
4. Ethernet switch - Allows network connectivity for remote access, control and alarming
5. All wiring and terminals are labeled for easy wiring and circuit identification

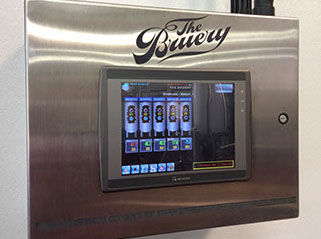

6. Full color touchscreen display
1
2
3
4
5
6
These parts are typical on both unijacket and multijacket systems and can be customized to your needs. See above for additional photos and information.
